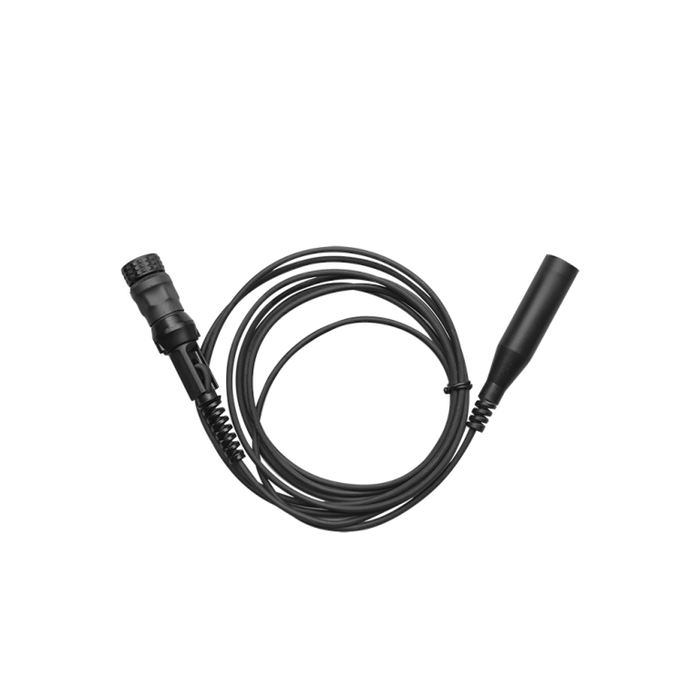

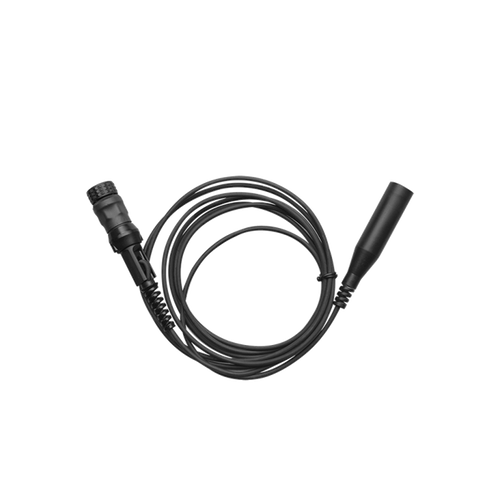

Van Essen Instruments DXT-Cable

Van Essen Instruments DXT-Cable

$133.34
$133.34 $199.02
SAVE 33% Sold out

Quick and easy downloading with a Diver deployed on a data cable.

Deploying a Diver on a Diver communication cable saves time on downloading and provides real-time data from your Diver. Connect your laptop equipped with Driver-Office to the DXT-Cable using the USB interface Cable to program and read data from the Diver. Available in lengths from 1 meter to 300 meters.

This DXT-cable can be used for stand-alone applications or to directly connect to the Diver-Link, Diver-MOD, or Diver-SDI. In case of stand-alone use, not connected to any one of these accessories, the Well Top must be used to seal the cable and prevent it from falling into a well with a diameter of 2 inches or less.

Features & Benefits Click here to learn more about the product.

Features

  • Program, read data, stop and start from the top of the well.
  • Read Diver data using the Diver-Mate.
  • User-adjustable standard lengths.
  • Custom lengths.
  • One eye technology.

Benefits

  • No redeploying and displacement of the Diver after reading data.
  • Fit the cable to your needs.
  • Easy installation.
  • Easily screws on the Diver, no alignment necessary.
Applications Click here to view product applications.
  • Long term water level monitoring
  • Groundwater monitoring networks
  • Engineering and construction: Pump tests
  • Aquifer characterization: Pump and slug tests
  • Pollution monitoring: Landfill leachate monitoring
Key Specifications Click here to view product specifications.

Cable

Jacket Black UV resistant FR Polyurethane
Diameter (OD) 3.2 mm ± 0.3 mm
Strength 300 meter of cable mass + 5 kg for 1 week 7 kg load for 15 seconds

Top Connector

Housing material PA, ABS
O-rings NBR

Bottom Connector

Housing material Nylon (Polyamide 6)
O-rings FKM
Optical port Polycarbonate

Length Accuracy

Standard length ±0.5% of cable length
Custom length ±1% of cable length
Measured ±0.2% of specified cable length

Enviromental

Value Unit
Temperature range -20 .. +80 °C

Communication

Compatible Diver models:

  • TD-Diver (DI8xx)
  • Baro-Diver (DI800)
  • Micro-Diver (DI6xx)
  • Cera-Diver (DI7xx)
  • CTD-Diver (DI27x)
  • Mini-Diver (DI5xx)
  • Baro-Diver (DI500)
